ABB Type High Voltage Fuse Link (export-oriented high-voltage fuse link)

ABB Type High Voltage Fuse Link (export-oriented high-voltage fuse link)

The fuse links belong to “K”, “T” and “H” type. The product has general type, universal type and screw type according to IEC-282 standard. They are suitable for drop-out fuse with rated voltage of 11-36KV.



¨"KB,KU, KS" type fuses belong to"K" and "T" "H”type fuse, it has general type,universal type and screw type available accarding to IEC-282 standard.Tkey are suitabe for dropoff fuse cut out with rated voltage 11-36kv

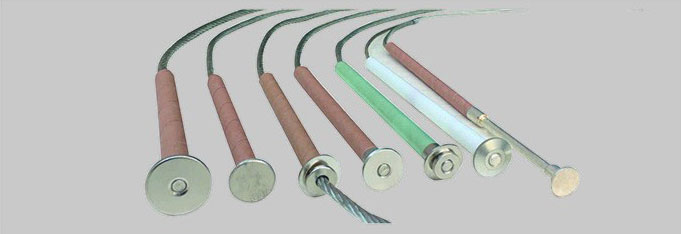

abb type high voltage fuse link export oriented high voltage fuse link 2

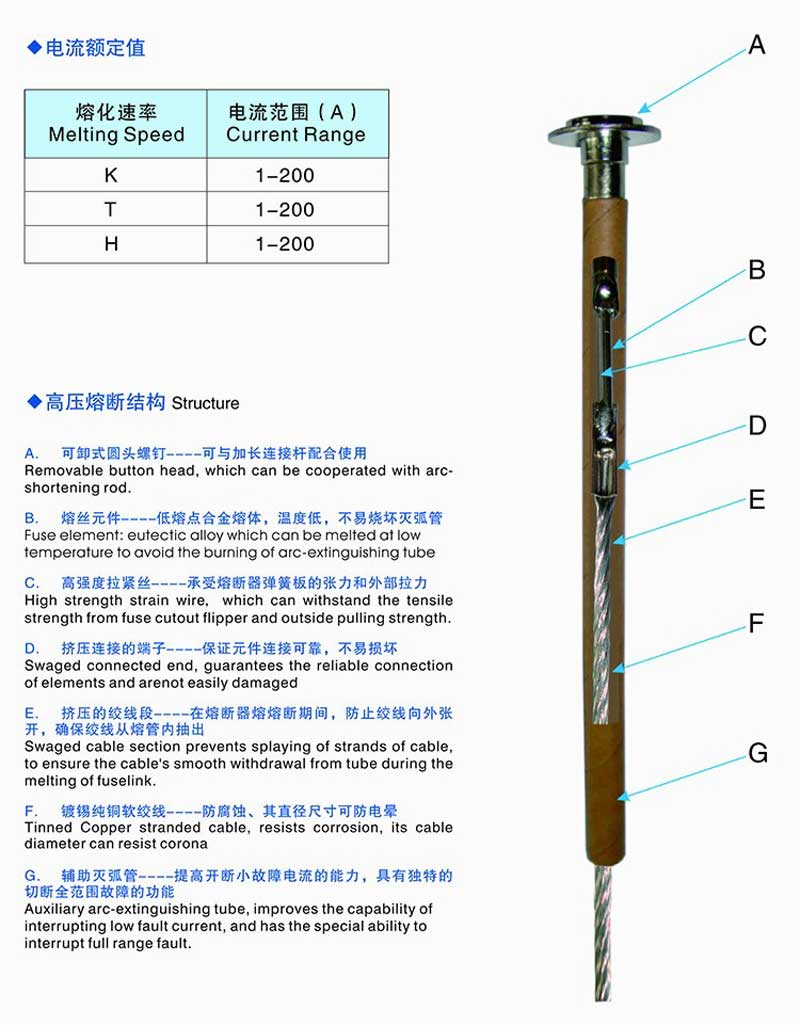

abb type high voltage fuse link export oriented high voltage fuse link 3

Rated current (A)

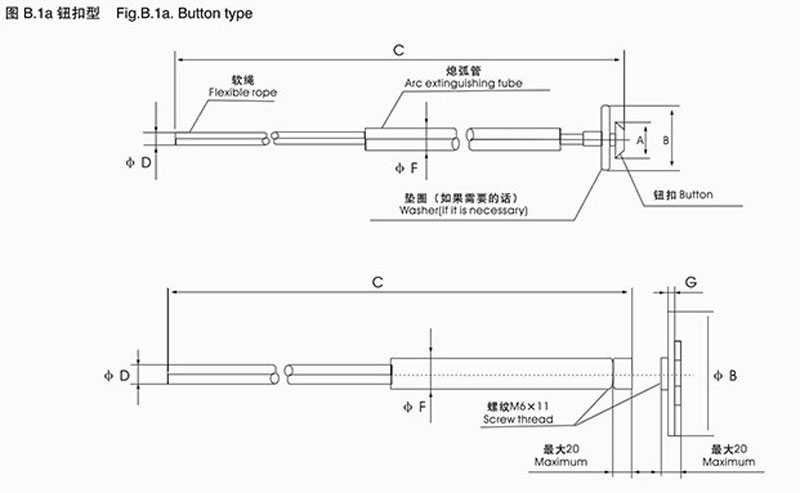

Dimension (mm)

Quantity / Carton

A

B

C

D

F

1 to 25

12.5-0.2

19.0-0.2

Note 1

2.0

8.0

500

30 to 40

3.0

8.0

50 to 75

19.0-0.2

Not applicable

4.0

10.0

250

100 to 20

5.0

10.0

250

140 to 200

7.0

12.0

250

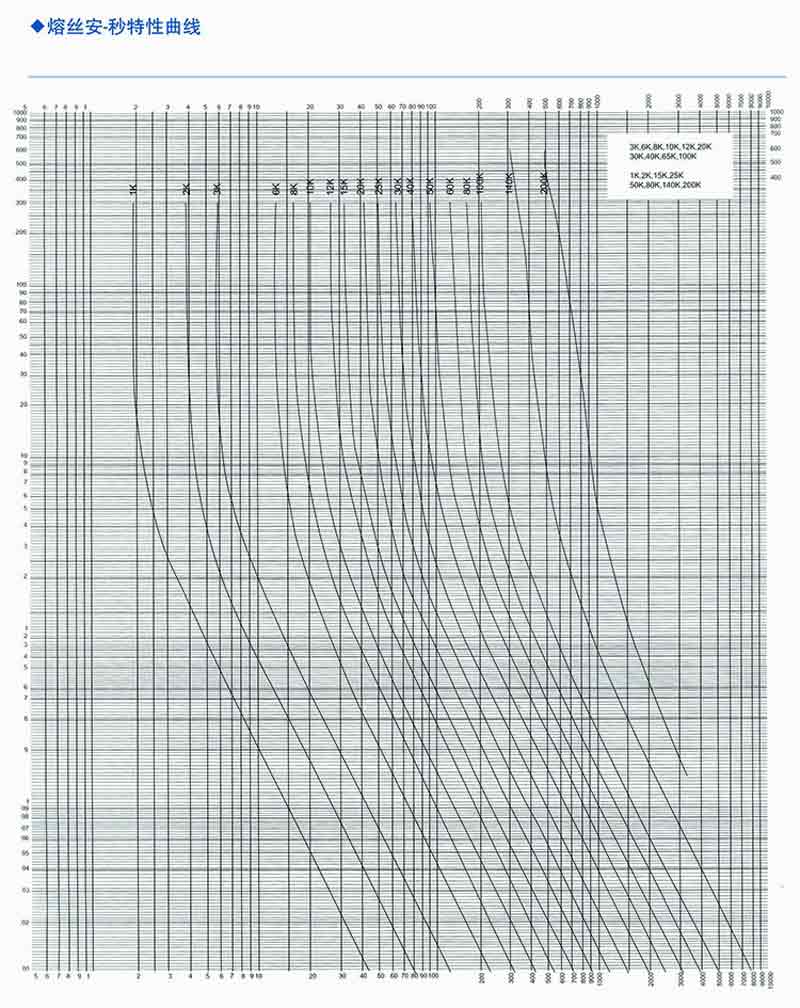

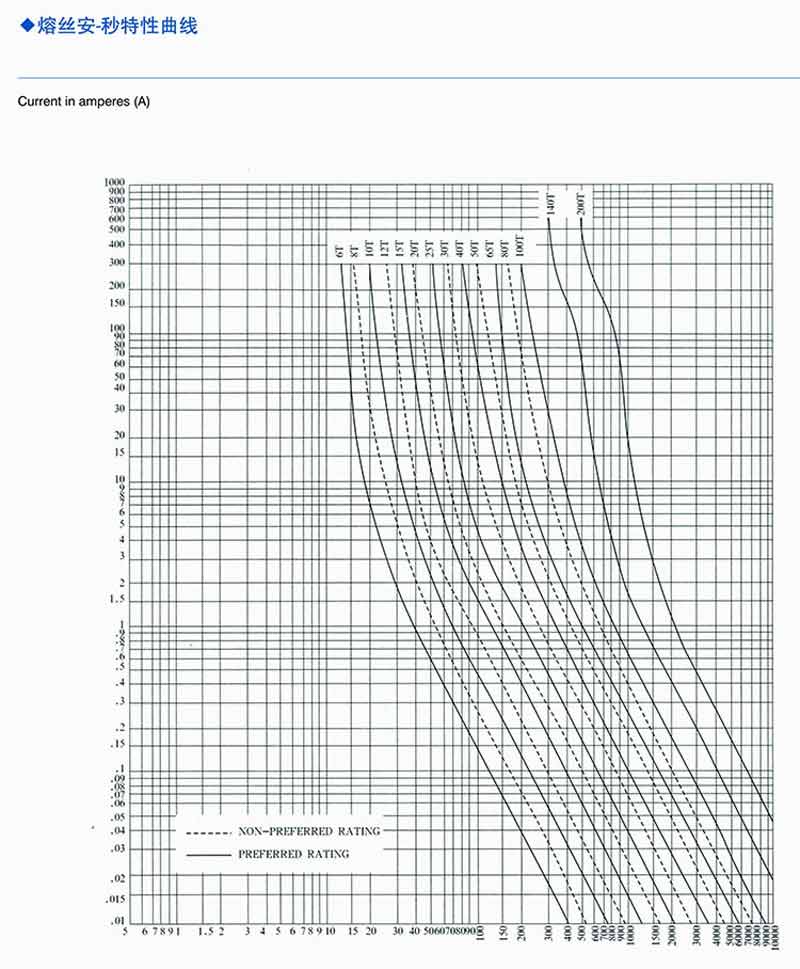

abb type high voltage fuse link export oriented high voltage fuse link 4abb type high voltage fuse link export oriented high voltage fuse link 5abb type high voltage fuse link export oriented high voltage fuse link 6
