High-Voltage Limit-Current Fuse For Protection Of Oil-Immersed Type Voltage Transformer

High-Voltage Limit-Current Fuse For Protection Of Oil-Immersed Type Voltage Transformer

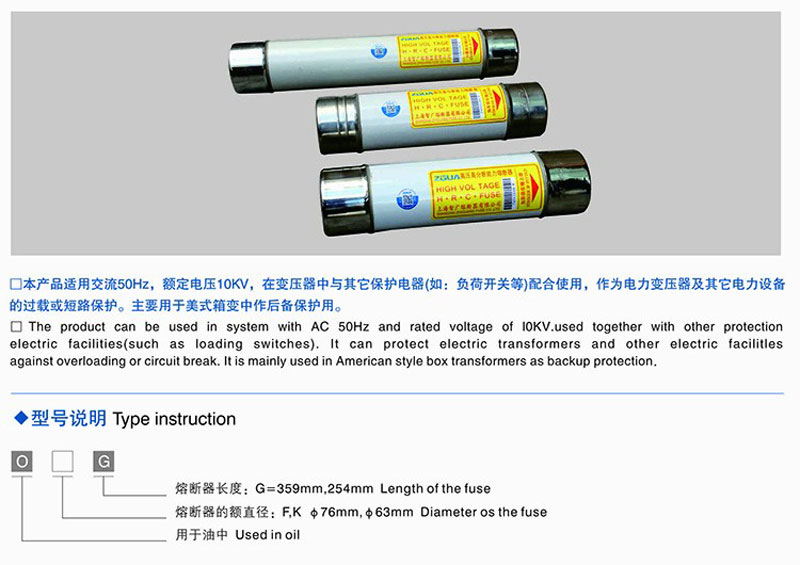

The product can be used in system with Ac 50Hz and rated voltage of 10KV, used together with other protection electric facilities (such as loading switches). it can protect electric transformers and other electric facilities against overloading or circuit break. It is mainly used in America style box transformers as backup protection.

high voltage limit current fuse for protection of oil immersed type voltage transformer 1

◆Basic parameters

See chart for the fuse of basic parameters

Type

Rated voltage (KV)

Max working voltage KV

Fuse rated current KA

Rated current of fuse link A

OFG

10

12

125

63, 80, 100, 125

200

160, 200

high voltage limit current fuse for protection of oil immersed type voltage transformer 3high voltage limit current fuse for protection of oil immersed type voltage transformer 4high voltage limit current fuse for protection of oil immersed type voltage transformer 5

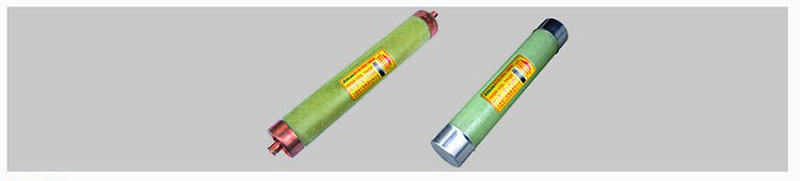

General

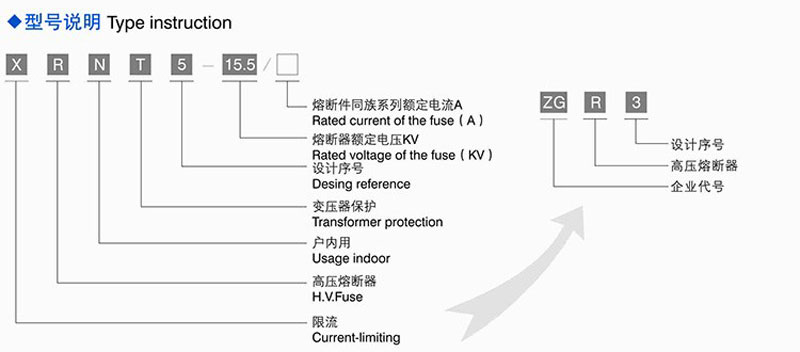

ZGR3(XRNT5) -15.5H.V. current-limiting back-up fuse for short-circuit protection of oil-immersed transformer (here-under fuse) is available for H.V.indoor electric system, with rated voltage 15.5Kv,rated current up to 175A,50Hz a.c.. It is used for protecting from short-circuit for poower transformer.It can offer protection of all-round together in series with ZGR4 (PRNT13)-15.5 H.V. fuse for overload protection of oil-immersed transformer.

Standard

Accord with GB15166.2 Alternating-current high-voltage fuses Current-limiting fuse.

◆Order number

Rated Current (A)

Order Number

31.5

ZGR3-31.5

40

ZGR3-40

50

ZGR3-50

63

ZGR3-63

80

ZGR3-80

100

ZGR3-100

125

ZGR3-125

150

ZGR3-150

175

ZGR3-175

◆Basic parameters

Rated voltage KV

Fuse rated current A

Melt rated current A

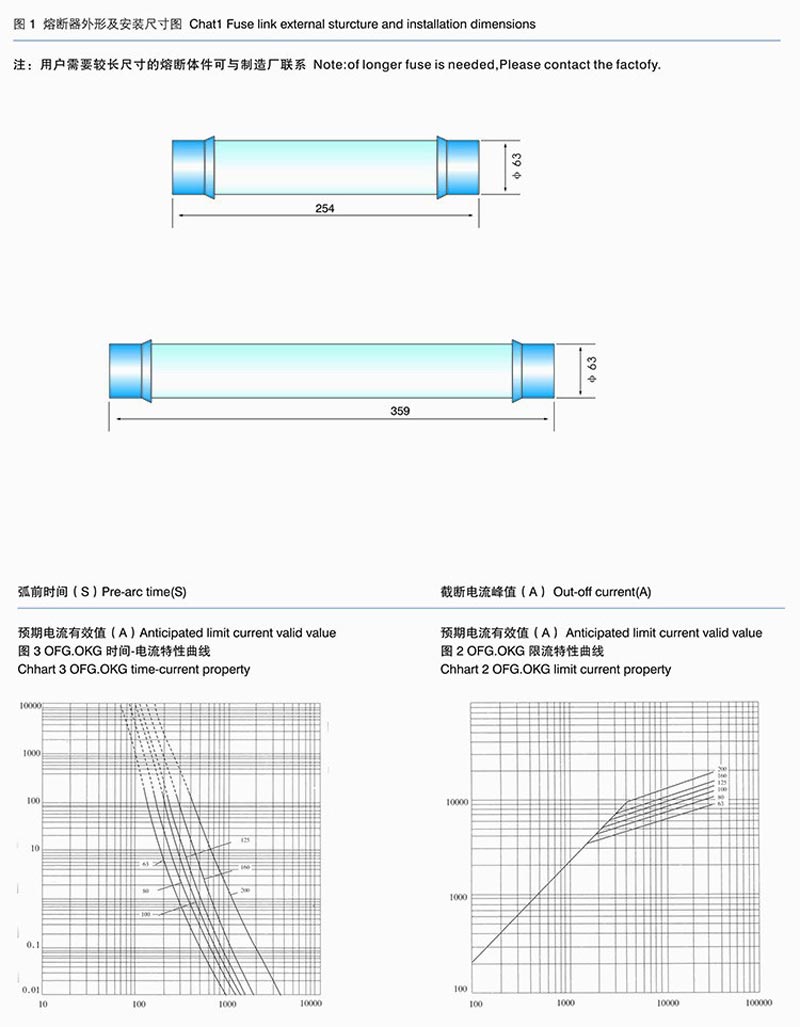

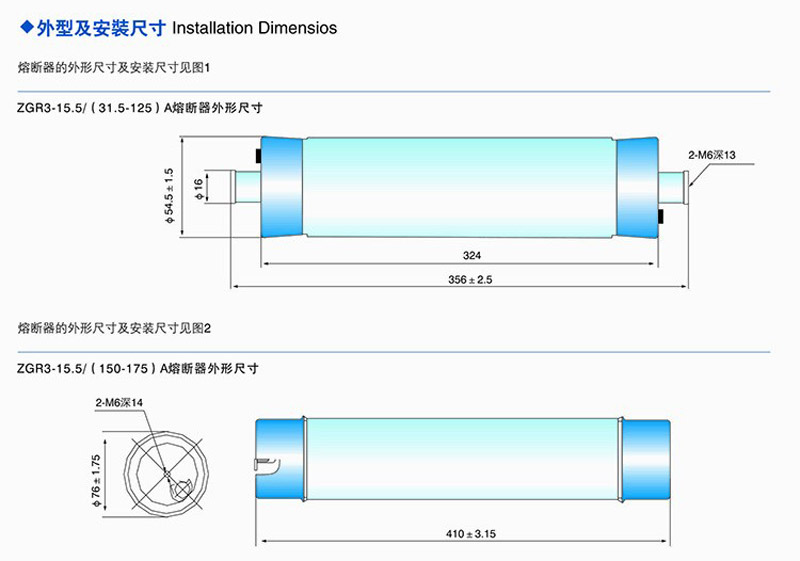

Dimensions

Rated short-circuit breaking current A

17.2

125

31.5, 4,50, 63, 80, 100, 125

图1

50

175

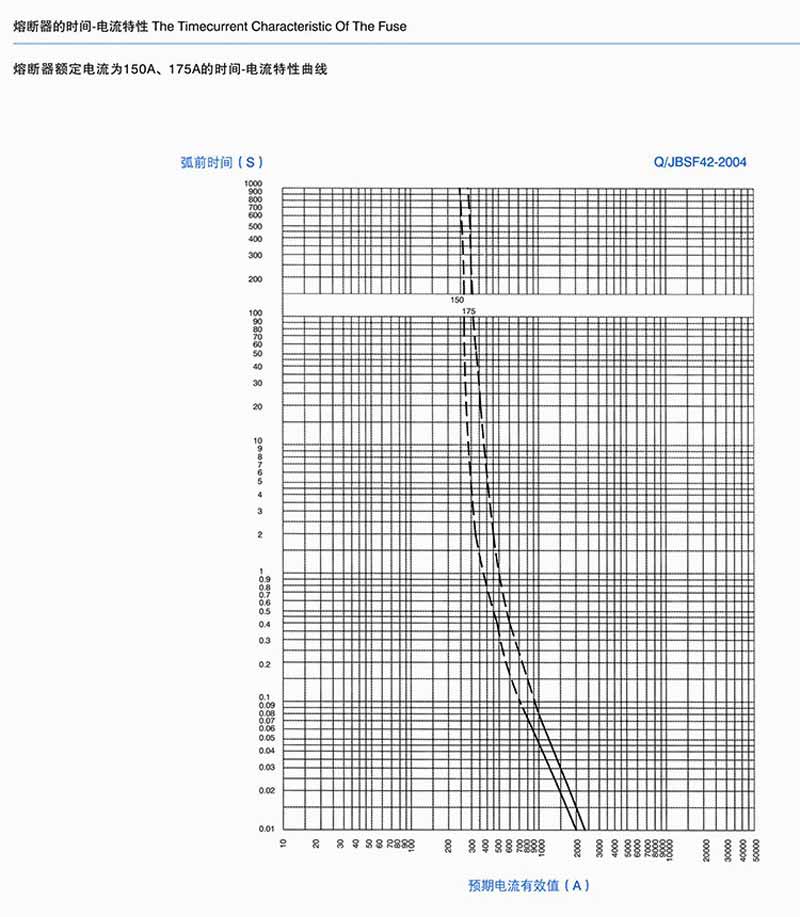

150, 175

图2

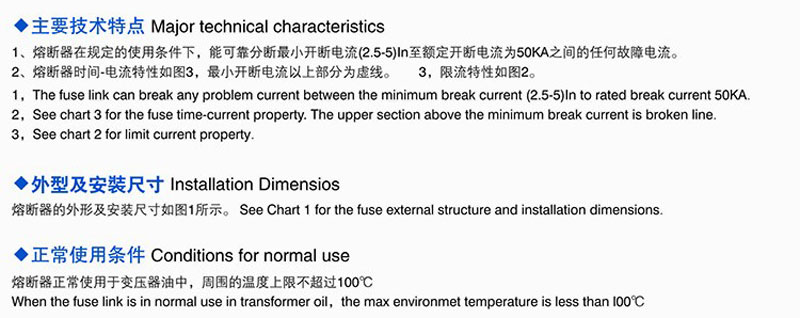

Normal working conditions: The fuse is normally used in transformer oil, and the upper limit of the temperature of the surrounding oil does not exceed 100℃

high voltage limit current fuse for protection of oil immersed type voltage transformer 6

◆Selection of fuse

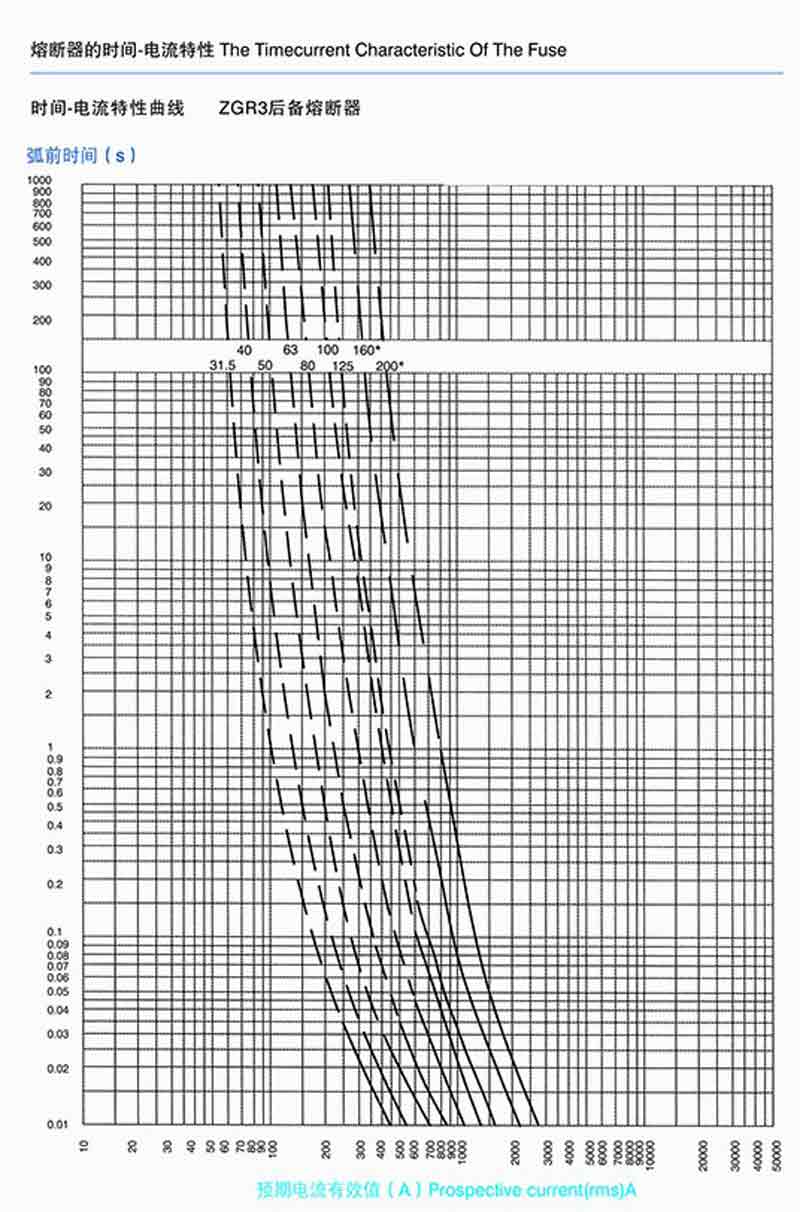

Recommended selection of ZGR3 and ZGR4 fuses

General selection guide for primary-side fuses of 10KV oil-immersed transformers:

Transformer capacity (KVA)

Rated current (A)

ZGR3 rated current (A)

ZGR4 rated current (A)

50

2.75

31.5

6.3

100

5.5

40

10

160

8.8

63

16

200

11.0

80/63

25A

250

13.7

80

25A

315

17.3

100

40A

400

22.0

125

40A

500

27.5

150

50A

630

34.6

175

63A

800

44.0

100 double pin

63A

1000

55.0

100 double pin

100A

1250

68.7

125 double pin

100A

high voltage limit current fuse for protection of oil immersed type voltage transformer 7

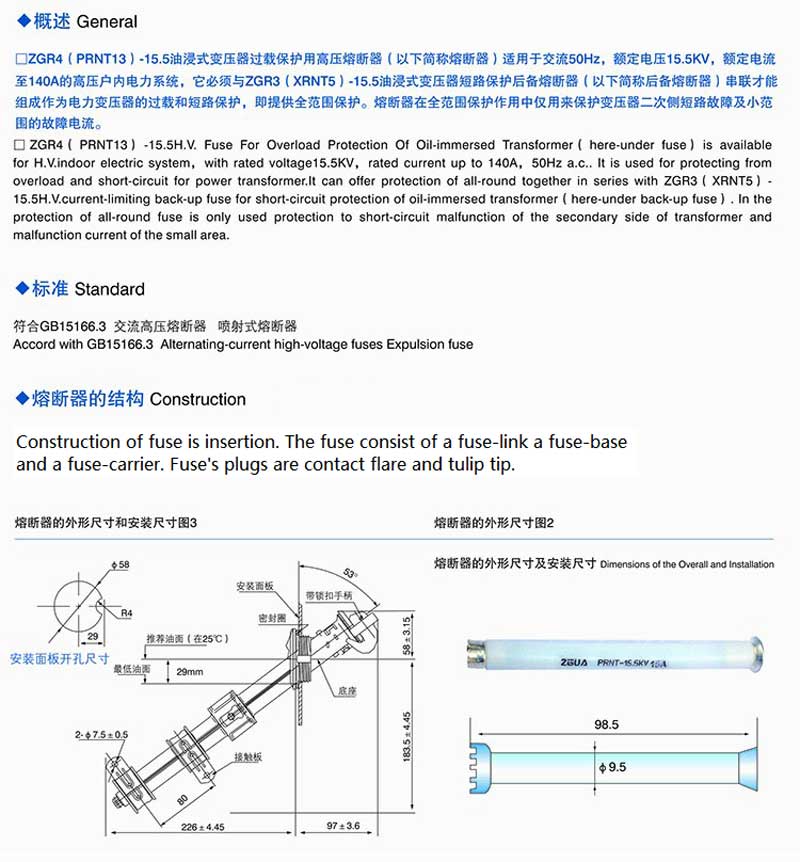

◆Construction

The fuse is a bolt connection structure
The fuse is composed of melt, melt tube, cap, quartz sand, skeleton, sealing ring, etc. The melt is processed from pure silver into a high-precision tape with variable cross-section. The melt is wound on the skeleton in an orderly manner and placed in the melting tube, which is filled with quartz sand as the arc extinguishing medium. In order to adapt to the use of immersion in transformer oil, a sealing ring is used between the cap and the melting tube, and the oil-resistant, high-temperature adhesive is used for bonding, and two sealing lines are set to ensure reliable sealing.

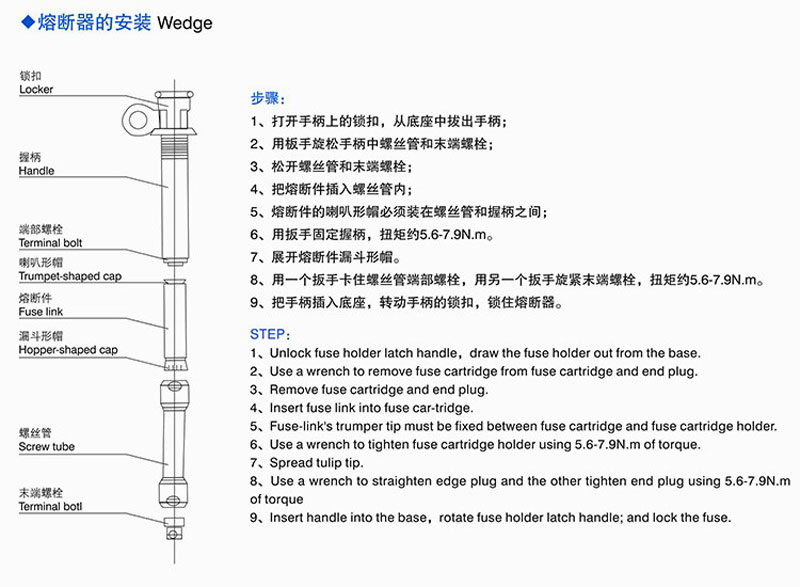

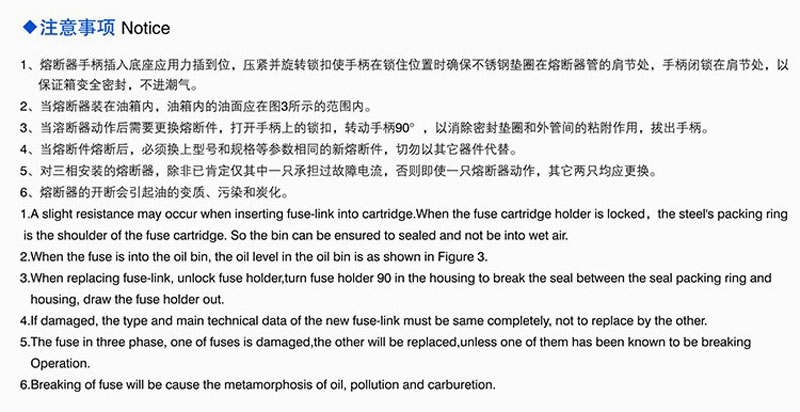

◆Installation, use and maintenance of fuse

Recommended horizontal installation of the fuse

When the fuse is broken, it must be replaced with a new fuse with the same model size and parameters. Do not replace it with other devices. When replacing the fuse, it is normal to find that the fuse tube of the fuse turns yellow.
For three-phase fuses installed, unless it has been confirmed that only one of the fuses has undertaken the fault current, even if one fuse operates, the other two should be replaced.
The rated current of the fuse is 175A. When the user needs a larger current level, it is recommended to use a double pin fuse. At the same time, when using Shuangpin, the mutual influence factors of temperature should be considered. Generally, the fuse should be reduced by 10%-20%.

high voltage limit current fuse for protection of oil immersed type voltage transformer 8high voltage limit current fuse for protection of oil immersed type voltage transformer 9high voltage limit current fuse for protection of oil immersed type voltage transformer 10

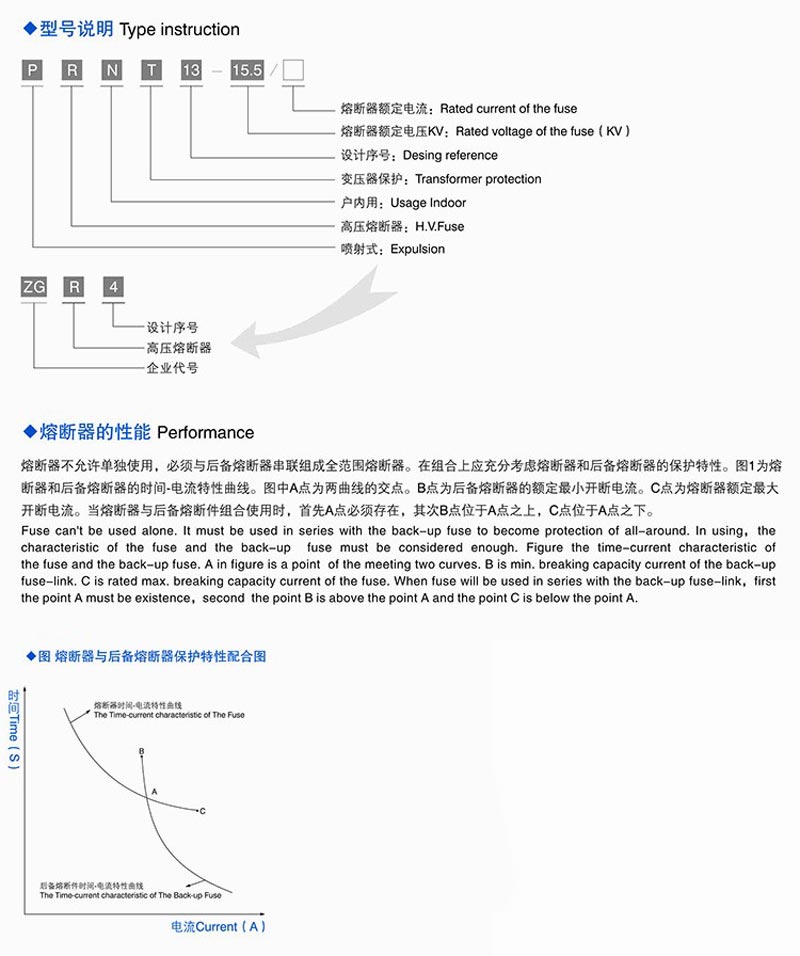

◆Order number

Rated current

Fuse-link Order number

Fuse-base Order number

6.3

STR4-6.3

STR4-D

10

STR4-10

16

STR4-16

25

STR4-25

40

STR4-40

50

STR4-50

63

STR4-63

100

STR4-100

140

STR4-140

high voltage limit current fuse for protection of oil immersed type voltage transformer 11

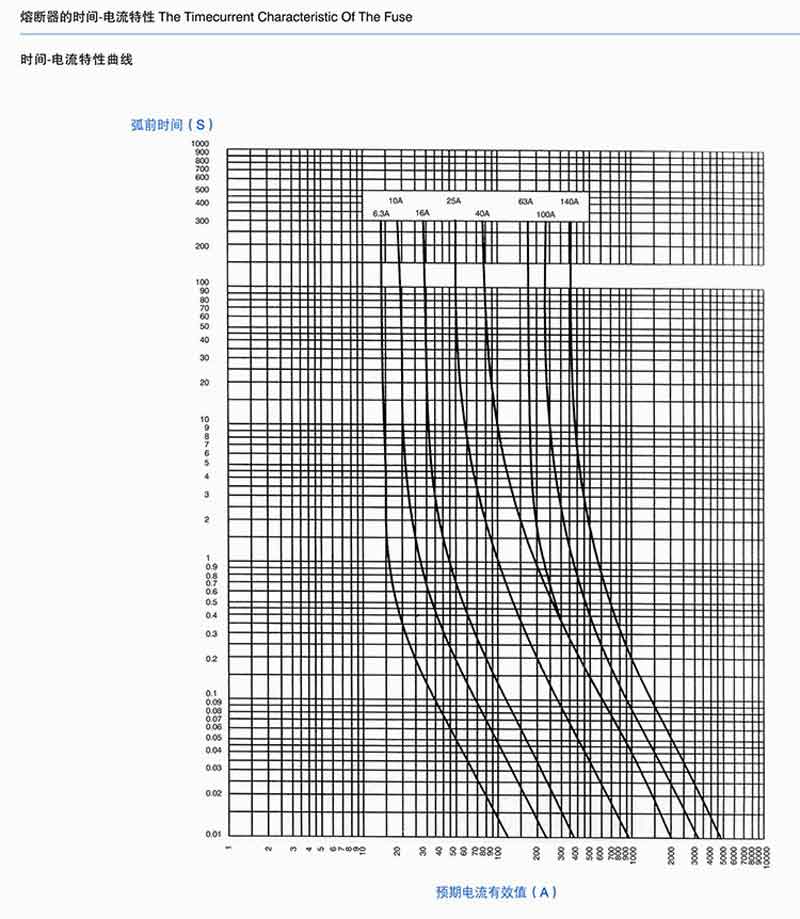

◆Basic parameters

Rated voltage 15.5

MAX. voltage 17.2

Rated current of the fuse-link 140

Rated current of the fuse-element

6.3、10、16、25、40、50、63、100、140

Operating condition

in the transformer oil

Rated short-circuit breaking capacity current

2.5

high voltage limit current fuse for protection of oil immersed type voltage transformer 12high voltage limit current fuse for protection of oil immersed type voltage transformer 13high voltage limit current fuse for protection of oil immersed type voltage transformer 14
